IKA MultiDrive basic Mills
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery). With the MultiDrive basic it is possible to mix or grind. There is a USB interface available for easy actuation and documentation respectively. In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill.
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output.
Interval operation
The option of interval programming is simple to activate at the
press of a button. Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending.
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation. Thus, coolant and sample remain separate.
Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task.
Vessels don't belong to the scope of delivery.
Scope of delivery
IKA MultiDrive basic
Socket wrench
Disassembly tool 1
Disassembly tool 2
Cleaning brush
USB Cable - USB A to Micro-B, 2 m

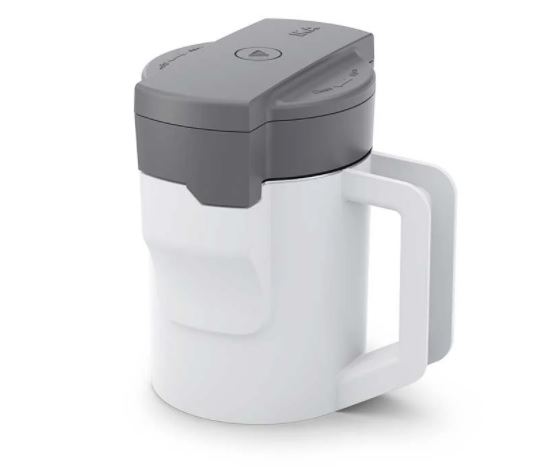

MultiDrive MI 250 Milling chamber
Ident. No.: 0025003967
MI 250 is a vessel with beater and is used in combination with IKA MultiDrive basic for dry grinding of a variety of applications, such as woods, pet food, frozen product, plastic.
IKA MultiDrive basic in combination with milling chamber MI 250 is the perfect successor of your M 20 mill.
The milling chamber has to be cleaned manually. The knife is easy to dismantle for intensive cleaning.
The scope of delivery includes a standard beater made of stainless steel. Other optional tools, such as a star knife made of stainless steel or a beater made of hard metal have to be ordered separately.
MultiDrive MI 400 Milling chamber
.jpg)
Ident. No.: 0025003965
MI 400 is a vessel with beater and is used in combination with IKA MultiDrive basic for dry grinding of a variety of applications, such as woods, pet food, frozen product, plastic.
The milling chamber has to be cleaned manually. The knife is easy to dismantle for intensive cleaning.
The scope of delivery includes a standard beater made of stainless steel. Other optional tools, such as a star knife made of stainless steel or a beater made of hard metal have to be ordered separately.
MultiDrive BL 2000 Blender vessel
Ident. No.: 0025003961
BL 2000 is a vessel with mixing knife and is particularly useful in combination with IKA MultiDrive basic for wet grinding of a variety of applications, such as meat, sausage, soy beans, silage, vegetables.
All parts can be cleaned in a dishwasher. The knife is easy to dismantle for intensive cleaning.
The scope of delivery includes a standard mixing knife made of stainless steel.
MultiDrive MI 400.2 Star shaped cutter, stainless steel
Ident. No.: 0020023171
Star shaped cutter, stainless steel
Suitable for fibrous materials such as paper and plant material
Compatible with IKA MultiDrive MI 400 / 400 T
Process type batch
Operating principle cutting
Feed hardness max. [Mohs] 5
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter [mm] 76.5
MultiDrive MI 400.3 Beater, tungsten carbide
