LABTron SH1-3D 3D Shaker
Powerful and Soft: Powerful Driving station realized soft and stable operation by ''Slow Start Function''
Soft and Long Life Cycle: BLDC motor does not need ordinary maintenance works and the expected lifetime
High Safety: Over-Load, Over Current Protection
Program Operating: Applies program function realize complex experiment to one time
Touch Button: Excellent desing focused on the convenience of users
Waterproofing in controller board: It is realized ''High Safety'' against big difference in temperature and humifity as lab. Refrigerator usage
High Fidelity LCD Display: Operation Icon of high intuitiveness and Easy-to-read backlit LCD are equipped
|
Model |
SH1-3D |
|
|
Shaking action |
3D Orbital |
|
|
Base Platform dimensions (w x d) |
350 X 350 mm |
|
|
Speed range |
10 to 70rpm |
|
|
Angle |
6° Tilt Angle |
|
|
Controller |
Digital Fuzzy Controller with Touch Button & Jog Dial |
|
|
Timer |
99hr 59min., ±1 min. increments |
|
|
Display |
Full Digital LCD Display with Back-Light Function |
|
|
Programmable Function |
6 Program, 10 Steps |
|
|
Maximum load |
10Kg |
|
|
Motor Type |
DC Motor |
|
|
Power Consumption |
50W |
|
|
Permissible Temp. & Humidity |
5℃~40℃, <80% |
|
|
Safety Devices |
Overload Protector for Motor |
|
|

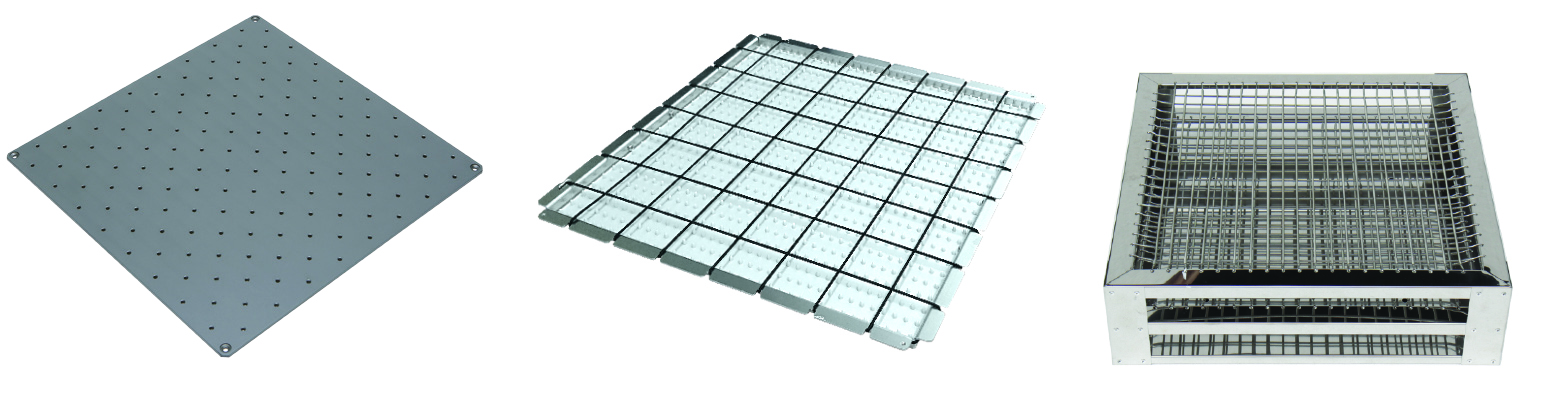

Optional Platform Size |
Universal Platform (w x d) |
350 x 350 mm |
|
Rubber mat platform (w x d) |
370 x 370 mm |
|
|
Dimensions (w x d x h) & Net Weight |
403 x 503 x 190mm, 11.2Kg |
|
|
Packing Size (w x d x h) & Gross Weight |
485 x 595 x 268mm, 13.5Kg |
|
|
Power Supply |
1 Phase, AC 230V, 50/60 HZ |
|
Accessories
