Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available. MultiDrive control mixes, grinds and is also fitted with a dispersion vessel and a disposable tube. There is a USB interface available for easy actuation and documentation respectively.
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output.
Interval operation
The option of interval programming is simple to activate at the
press of a button. Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending.
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation. Thus, coolant and sample remain separate.
TFT-display
A clear TFT-display guarantees user-friendly operation.
Temperature measurement
MultiDrive control offers temperature measurement and vessel
recognition using RFID. A temperature limit can be set for
temperature-sensitive materials, or for specific planned reactions to
protect against overheating.
Weighing function
The weighing function is also integrated into the user-friendly
workflow of the IKA MultiDrive control. Weighing is performed
before crushing using the same mixing cup, so that no transfer
of contents is required.
Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task.
Vessels don't belong to the scope of delivery.
Scope of delivery
IKA MultiDrive control
Socket wrench
Disassembly tool 1
Disassembly tool 2
Cleaning brush
USB Cable - USB A to Micro-B, 2 m

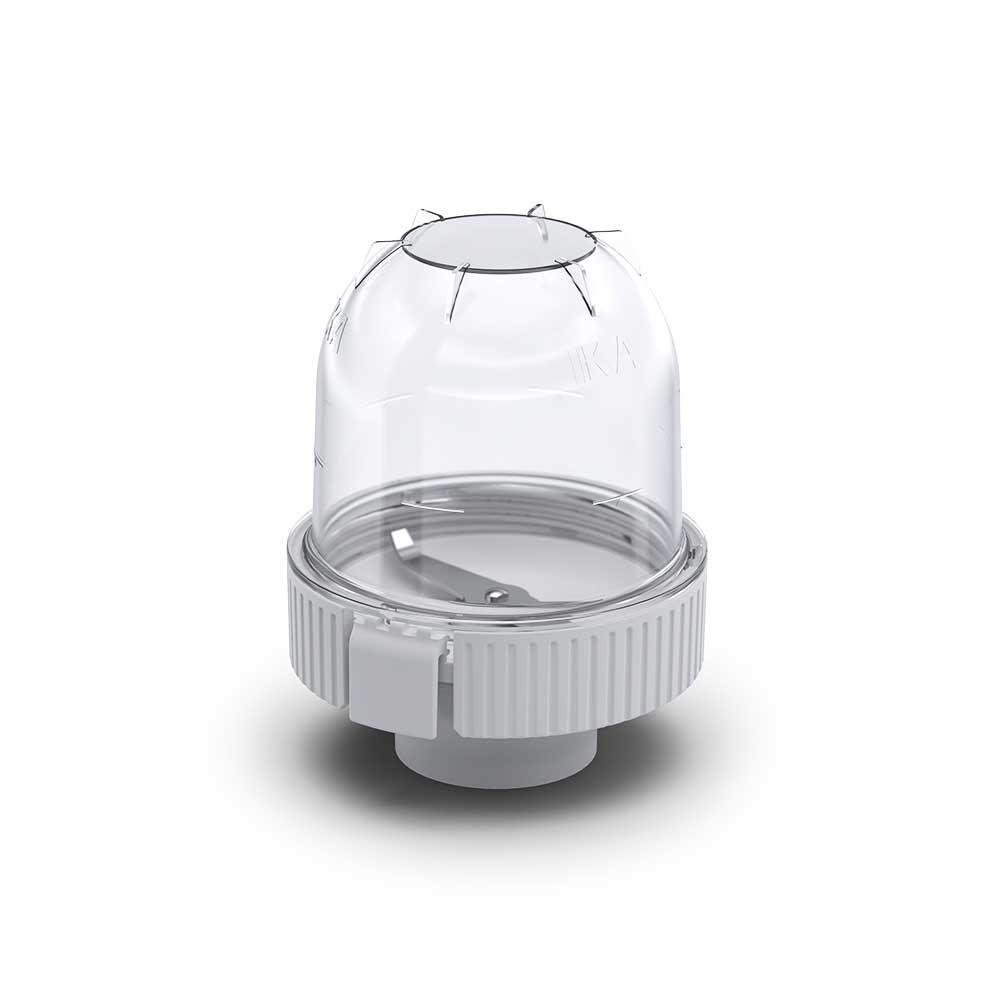

MultiDrive MT 150.5 Milling tube, autoclavable
Ident. No.: 0020023173
MT 150.5 is a plastic milling tube with a stainless steel beater, which is ideally suited for grinding dry samples in combination with the MultiDrive control universal crusher. Thanks to the transparent plastic, the grinding material can be continuously observed.
An integrated RFID chip simultaneously stores and limits the lifespan of the milling tube. 5 spare seals are included in the scope of delivery. By replacing the seal, the service life of the grinding chamber can be extended. Cross contamination is effectively prevented by sterilizing the milling tube in an autoclave.
Quantity: 5 tubes/ pack
Useable volume max.: 150 ml
Feed grain size max.: 10 mm/ 5 Mohs
Material in contact with medium: Stainless steel, PA, PC, PTFE, silicone
FDA compliance: Yes
Note: For safety reasons TC 1 protective housing is mandatory to operate the tube. MultiDrive won't start, if TC 1 isn't attached. TC 1 is available as an accessory.

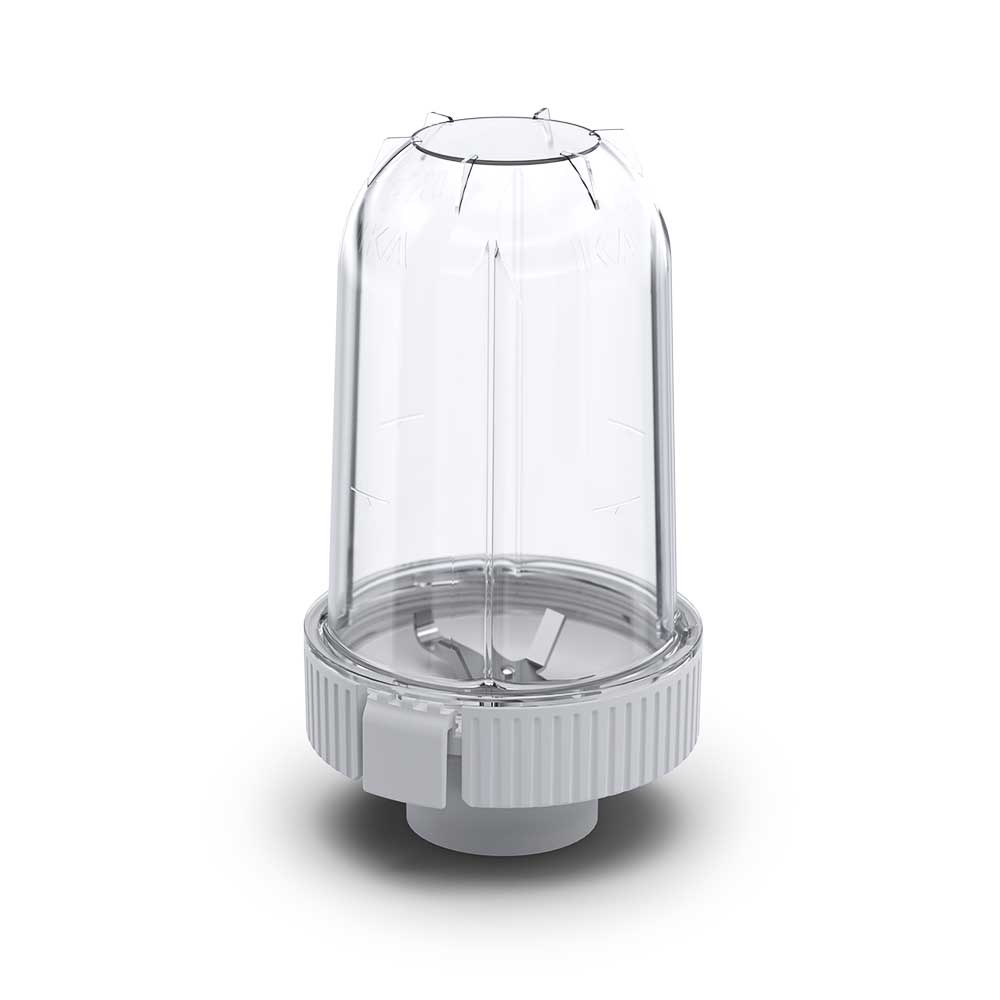

MultiDrive BT 250.5 Blending tube, autoclavable
Ident. No.: 0020023174
BT 250.5 is a plastic blending tube with a stainless steel beater, which is ideally suited for wet grinding in combination with the MultiDrive control universal crusher. Thanks to the transparent plastic, the change of the sample material can be continuously observed.
An integrated RFID chip simultaneously stores and limits the lifespan of the blending tube. 5 spare seals are included in the scope of delivery. By replacing the seal, the service life of the grinding chamber can be extended. Cross contamination is effectively prevented by sterilizing the grinding chamber in an autoclave.
Quantity: 5 tubes/ pack
Useable volume max.: 250 ml
Feed grain size max.: 10 mm/ 5 Mohs
Material in contact with medium: Stainless steel, PA, PC, PTFE, silicone
FDA compliance: Yes
Note: For safety reasons TC 1 protective housing is mandatory to operate the tube. MultiDrive won't start, if TC 1 isn't attached. TC 1 is available as an accessory.
MultiDrive TC 1 Protective housing
Ident. No.: 0020023489
Protective housing for MultiDrive MT 150 and BT 250
Dishwasher cleanable yes
Suitable for solvents yes
Dimensions (W x H x D) 110 x 180 x 128 mm
Weight 0.365 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %

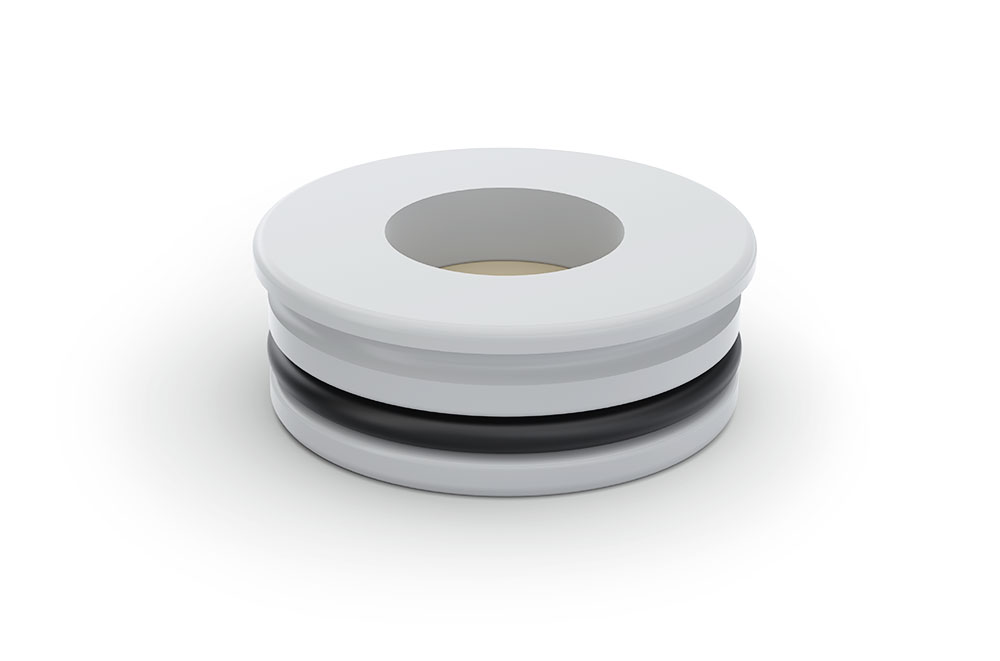

MultiDrive TS 1 Spare seal with reactivation code
Ident. No.: 0020023490
Spare seals for MT 150.5 and BT 250.5 with reactivation code. Scope of delivery: 5 pcs.
MultiDrive MI 250 T Milling chamber temperature measurement
Ident. No.: 0025003968
MI 250 T is a vessel with beater and temperature sensor, which is particularly useful in combination with IKA MultiDrive control for dry grinding of a variety of applications, such as woods, pet food, frozen product, plastic.
The integrated temperature sensor allows continuous monitoring and an individual setting of the temperature limit. This is especially meaningful for temperature sensitive materials.
The milling chamber has to be cleaned manually. The knife is easy to dismantle for intensive cleaning.
The scope of delivery includes a standard beater made of stainless steel. Other optional tools, such as a star knife made of stainless steel or a beater made of hard metal have to be ordered separately.
Process type batch
Operating principle impact
Speed range 3000 - 20000 rpm
Circumferential speed max. 75 m/s
Useable volume max. 250 ml
Feed hardness max. 5 Mohs
Feed grain size max. 7 mm
Material beater/cutter stainless steel 1.4034
Material milling chamber stainless steel 1.4301
Material (other) stainless-steel, silicone, SIC
Power-ON time 30 min
Power-OFF time 10 min
Milling chamber, can be cooled with water yes
Mill feed can be cooled in milling chamber with dry ice yes
FDA conform yes
Multi use yes
Data transfer drive/vessel Wireless with RFID
Monitoring maintain time yes
Temperature measuring yes
Temperature measurement resolution 0.1 K
Accuracy of temperature measurement ±5 K
Temperature limit min. -50 °C
Temperature limit max. 120 °C
Beater/Knife diameter 71 mm
Suitable for abrasive substances yes
Dimensions (W x H x D) 160 x 180 x 160 mm
Weight 1.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
MultiDrive MI 400 T Milling chamber temperature measurement
Ident. No.: 0025003966
MI 400 T is a vessel with beater and temperature sensor, which is particularly useful in combination with IKA MultiDrive control for dry grinding of a variety of applications, such as woods, pet food, frozen product, plastic.
The integrated temperature sensor allows continuous monitoring and an individual setting of the temperature limit. This is especially meaningful for temperature sensitive materials.
The milling chamber has to be cleaned manually. The knife is easy to dismantle for intensive cleaning.
The scope of delivery includes a standard beater made of stainless steel. Other optional tools, such as a star knife made of stainless steel or a beater made of hard metal have to be ordered separately
Process type batch
Operating principle impact
Speed range 3000 - 20000 rpm
Circumferential speed max. 85 m/s
Useable volume max. 400 ml
Feed hardness max. 5 Mohs
Feed grain size max. 7 mm
Material beater/cutter stainless steel 1.4034
Material milling chamber stainless steel 1.4301
Material (other) stainless-steel, silicone, SIC
Power-ON time 30 min
Power-OFF time 10 min
Milling chamber, can be cooled with water yes
Mill feed can be cooled in milling chamber with dry ice yes
FDA conform yes
Multi use yes
Data transfer drive/vessel Wireless with RFID
Monitoring maintain time yes
Temperature measuring yes
Temperature measurement resolution 0.1 K
Accuracy of temperature measurement ±5 K
Temperature limit min. -50 °C
Temperature limit max. 120 °C
Beater/Knife diameter 81 mm
Suitable for abrasive substances yes
Dimensions (W x H x D) 160 x 180 x 160 mm
Weight 1.5 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
MultiDrive BL 2000.1 Standard blend knife, stainless steel
Ident. No.: 0020023169
Standard mixing knife, stainless steel
Compatible with IKA MultiDrive BL 2000 / 2000 T
Process type batch
Operating principle cutting
Feed hardness max. 5 Mohs
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter 75 mm
MultiDrive MI 250.1 Standard beater, stainless steel
Ident. No.: 0020023166
Standard beater, stainless steel
Suitable for most brittle materials up to Mohs hardness 5
Compatible with IKA MultiDrive MI 250 / 250 T
Process type batch
Operating principle impact
Feed hardness max. 5 Mohs
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter 71 mm
MultiDrive MI 250.2 Star shaped cutter, stainless steel
Ident. No.: 0020023167
Star shaped cutter, stainless steel
Suitable for fibrous materials such as paper and plant material
Compatible with IKA MultiDrive MI 250 / 250 T
Process type batch
Operating principle cutting
Feed hardness max. 5 Mohs
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter 66.5 mm
MultiDrive MI 250.3 Beater, tungsten carbide
Ident. No.: 0020023168
Beater, tungsten carbide
Suitable for harder materials up to Mohs hardness 9
Compatible with IKA MultiDrive MI 250.
Process type batch
Operating principle impact
Feed hardness max. 9 Mohs
Material beater/cutter Hard metal (WC)
FDA conform yes
Multi use yes
Beater/Knife diameter 74 mm
MultiDrive MI 400.1 Standard beater, stainless steel
Ident. No.: 0020023170
Standard beater, stainless steel
Suitable for most brittle materials up to Mohs hardness 5
Compatible with IKA MultiDrive MI 400 / 400 T
Process type batch
Operating principle impact
Feed hardness max. 5 Mohs
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter 81 mm

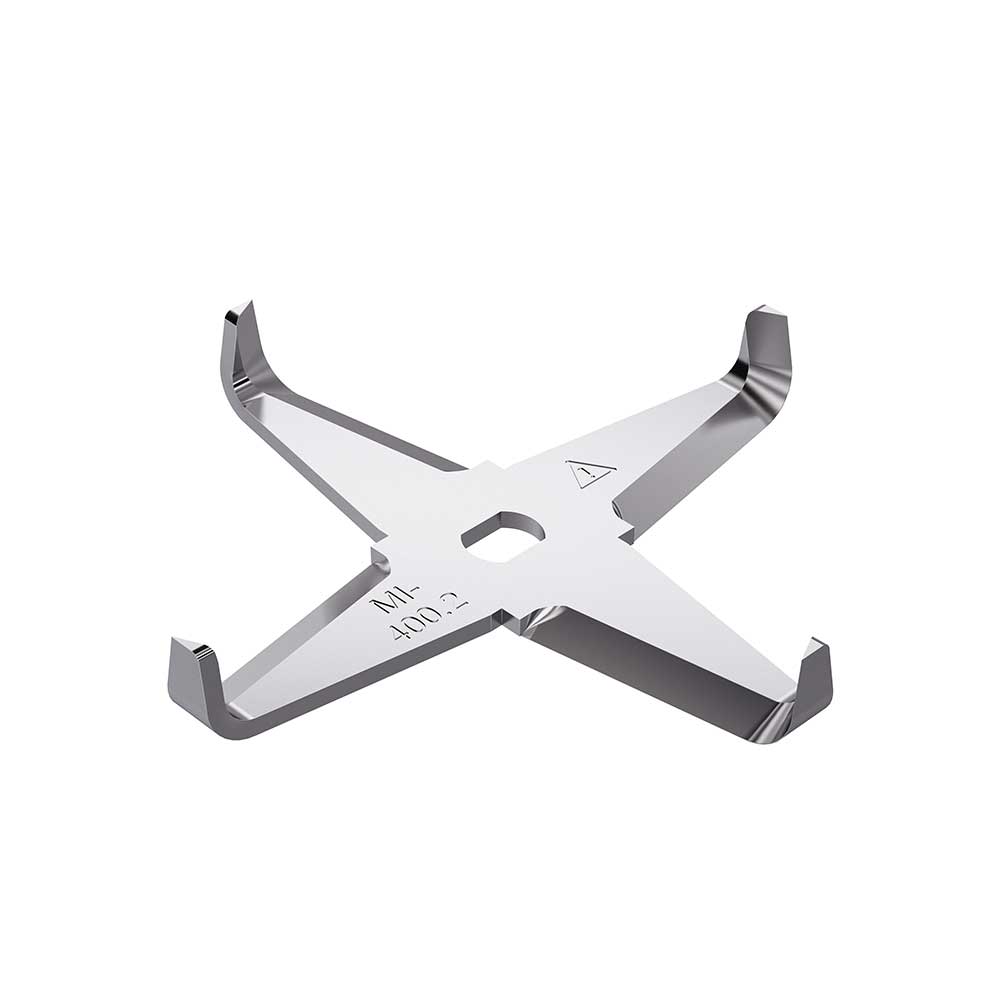

MultiDrive MI 400.2 Star shaped cutter, stainless steel
Ident. No.: 0020023171
Star shaped cutter, stainless steel
Suitable for fibrous materials such as paper and plant material
Compatible with IKA MultiDrive MI 400 / 400 T
Process type batch
Operating principle cutting
Feed hardness max. [Mohs] 5
Material beater/cutter stainless steel 1.4034
FDA conform yes
Multi use yes
Beater/Knife diameter [mm] 76.5
MultiDrive MI 400.3 Beater, tungsten carbide
Ident. No.: 0020023172
Beater, tungsten carbide
Suitable for harder materials up to Mohs hardness 9
Compatible with IKA MultiDrive MI 400.
Process type batch
Operating principle impact
Feed hardness max. 9 Mohs
Material beater/cutter Hard metal (WC)
FDA conform yes
Multi use yes
Beater/Knife diameter 85 mm
